Hantek 1008C Automotive Diagnostic PC Oscilloscope Program Generator 8CH USB DAQ


Hantek 1008C Automotive Diagnostic PC Oscilloscope USB2.0 Program Generator 8CH. Software support: Windows 7, Windows 8. Cost-effective 8 channels oscilloscope for vehicle testing; 2.4MSa/s, 12bits; DAQ card function; 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition. Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position.

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus. 8 channels oscilloscope, 2.4MSa/s real time sampling rate. 12 bits vertical resolution, spectrum analysis function.

Can analog signals of crankshaft, camshaft etc. USB 2.0 interface plug and play, and no need extra power supply. More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use. CH1, CH2, CH3, CH4, CH5, CH6, CH7, CH8. Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot.

Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle. Horizontal, Vertical, Track, Auto Measure Modes. +, -, x, ÷, FFT, Invert. Rectangular, Hanning, Hamming, Blackman Window. No need extra power supply.

185 150 27mm / 7.3 5.9 1.06in. 23 17 7.5cm / 9.05 6.7 2.95in (L W H). 1008C No HT25 Package List.

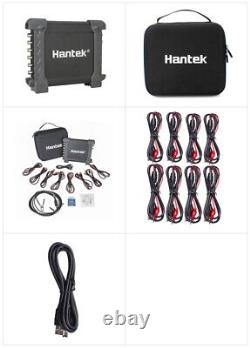

1 1008C DAQ oscilloscope 8 Crocodile probes/cable 1 USB Cable 1 CD. 1008C With HT25 Package List. 1 1008C DAQ oscilloscope 8 Crocodile probes/cable 1 secondary ignition probe HT-25 1 USB Cable 1 CD.
